HIGH SPEED ROLLER SHUTTER DOOR FORMING MACHINE

Thickness:0.7-0.8mm
Forming steps:44/46
Cutting type:Flying saw cutting
Drive type: gear box with universal joint transmission system/gear transmission system
Working speed:8-10m/min

  • 135/185/222(Width)

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Preheating---PU foam injection---Foam expand---Heat preservation platform conveyor---Pneumatic cutting---Run out table

TECHNICAL DETIALS

Uncoiler:2 Ton

Low pressure polyurethane foaming machine (SAIP Italy or China Brand)

Cutting type:Flying saw cutting
PLC automatic control system
Run out table
Material:Aluminum/ Color plate
Thickness:0.7-0.8mm
Coil width(HZ-135):400mm
Coil width(HZ-185):500mm
Coil width(HZ-222):615mm
Drive type: gear box with universal joint transmission system/gear transmission system
Forming steps:44/46
Main power:15KW
Working speed:8-10m/min
Forming Spec:135/185/222(Width)

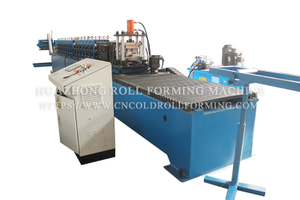

MACHINE PHOTOS


HIGH SPEED ROLLER SHUTTER DOOR FORMING MACHINE

VIDEO

FACTORY INFORMATION

客户照片1客户照片2

HIGH SPEED ROLLER SHUTTER DOOR FORMING MACHINE
