ROLL FORMING MACHINE FOR ROOF PANEL

Thickness: 0.8-2.5mm
Forming stations: 14
Hydraulic cutting
Drive type: gear transmission system
Forming speed: 12-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---feeding guide---roll forming---hydraulic die cutting---run out table

TECHNICAL DETAILS

Uncoiler: 5 Tons/manual

Hydraulic cutting

PLC automatic control system

Run out table

Thickness: 0.8-2.5mm

Coil width: 800-1250mm(according to the profile type)

Forming stations: 14

Main motor power: 7.5KW

Hydraulic power: 4KW

Forming speed: 12-15m/min

Drive type: gear transmission system

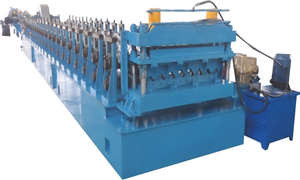

MACHINE PHOTOS

roof panel roll forming machine-7

FACTORY INFORMATION

客户

客户1

Roll forming machine for roof panel ROOF PANEL ROLL FORMING MACHINE Roof panel forming machine Corrugated roll forming machine Corrugated roll forming equipment COLD ROLL FORMING MACHINE
