AIR CONDITIONING FLANGE ROLL FORMING MACHINE ( FOR U PROFILE)

Thickness: 0.3-0.5mm
Forming stations: 6
Cutting type: hydraulic cutting
Drive type: gear transmission system
Forming speed: 13-15m/min

  • HZ

  • HZ

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

uncoiler---feeding guide---punching---roll forming---hydraulic cutting---run out table

TECHNICAL DETAILS

Embedded hydraulic station: one piece frame

Embedded hydraulic station:5.5KW, 380V, 50/60HZ, 3 Phase，with accumulator

Embedded electric cabinet: Delta PLC control system，Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 2 Tons

Thickness: 0.3-0.5mm

Coil width:28mm(According to the profile type)

Forming stations: 6

Main motor power: 4KW, 380V, 50/60HZ, 3 Phase

Cutting type: hydraulic cutting

Forming speed: 13-15m/min

Drive type: gear transmission system

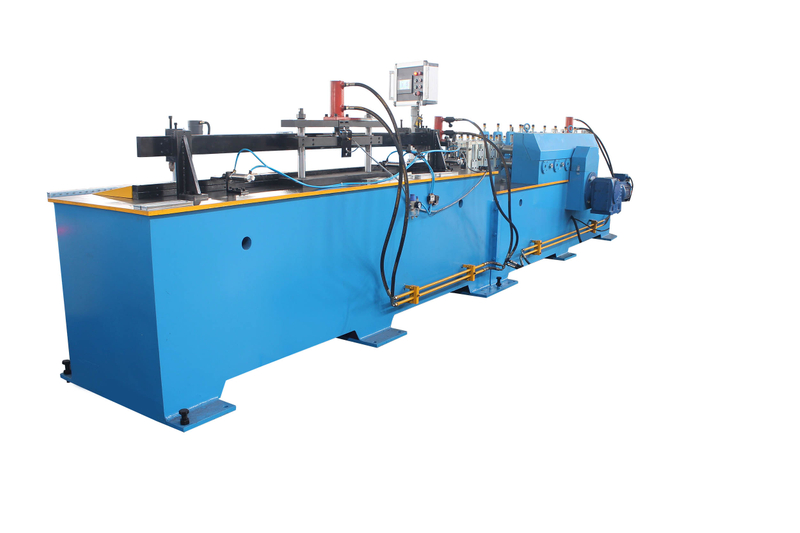

MACHINE PHOTOS

customized u track roll forming machine-2

customized u track roll forming machine-5

FACTORY INFORMATION

客户照片1客户照片2

Customized u track roll forming machine Custom u track roll forming machine U track roll forming machine u track roll forming equipment TRACK ROLL FORMING MACHINE track roll forming equipment CUSTOMIZED ROLL FORMING MACHINE Custom Roll Forming Machine air conditioning flange roll forming machine
