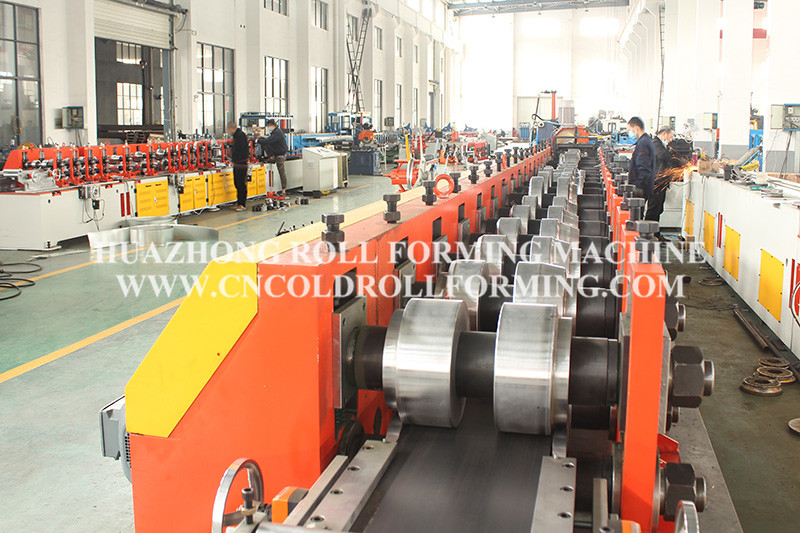

ANGLE PLATE ROLL FORMING MACHINE

Thickness: 4.0mm
Forming stations: 18
Cutting type: Hydraulic disk saw cutting
Drive type: Gear transmission
Forming speed: 15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic disk saw cutting---Run out table


TECHNICAL DETAILS

Frame: One-piece frame

Uncoiler: 5 Tons hydraulic

Forming station: 18

Driving type: Gear transmission

Main motor power: 22KW*2 ,220/380V,50/60HZ,3 Phase

Hydraulic system: 7.5kw

Electrical system: Delta control system

Cutting type: Hydraulic disk saw cutting

Cooling system: water cooling system

Material thickness: 4.0mm，Galvanized sheet

Forming speed: 15m/min

Run out: 6m


MACHINE PHOTOS

Angle plate roll forming machine (5)

Angle plate roll forming machine (6)

Angle plate roll forming machine (7)

Angle plate roll forming machine (9)

VIDEO
