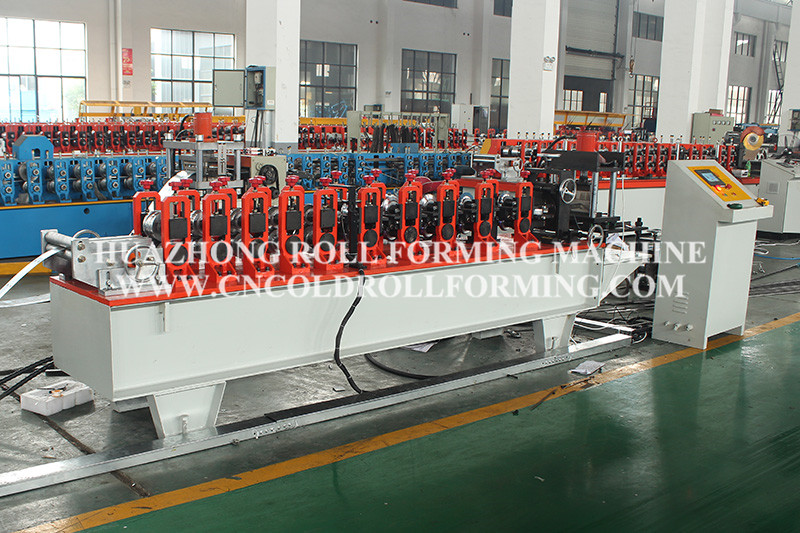

CUSTOMIZED ROLL FORMING MACHINE

Thickness: 0.4-0.5mm
Forming stations: 8-10
Cutting type: Hydraulic cutting
Drive type: Chain transmission
Forming speed: 8-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding with servo motor---Hydraulic punching---Roll forming---Hydraulic cutting---Run out table


TECHNICAL DETAILS

Frame: One-piece steel frame, hydraulic punching frame

Uncoiler: 1 Tons

Forming station: 8-10

Driving type: Chain transmission

Main motor power: 5.5KW,220/380V,50/60HZ,3 Phase

Hydraulic system: 5.5KW,2 stations

Electrical system: Delta control system

Cutting type: Hydraulic cutting

Punching system: Hydraulic punching

Material thickness: 0.4-0.5mm，304 stainless steel

Forming speed: 8-15m/min

Run out: 6m


MACHINE PHOTOS

Customized roll forming machine (2)

Customized roll forming machine (4)

Customized roll forming machine (9)
