SHELVE ROLL FORMING MACHINE

Thickness: 0.4mm
Forming stations: 6
Cutting type: Hydraulic cutting
Drive type: Gear transmission
Forming speed: 10-12m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Hydraulic punching---Roll forming---Hydraulic cutting---Run out table


TECHNICAL DETAILS

Frame: One-piece frame

Uncoiler: 2 Tons

Forming station: 6

Driving type: Gear transmission

Main motor power: 4KW ,220/380V,50/60HZ,3 Phase

Hydraulic system: 5.5kw

Electrical system: Delta control system

Cutting type: Hydraulic cutting

Punching system: Hydraulic punching with servo feeding

Material thickness: 0.4mm，DX51D galvanized sheet

Forming speed: 10-12m/min

Run out: 3m

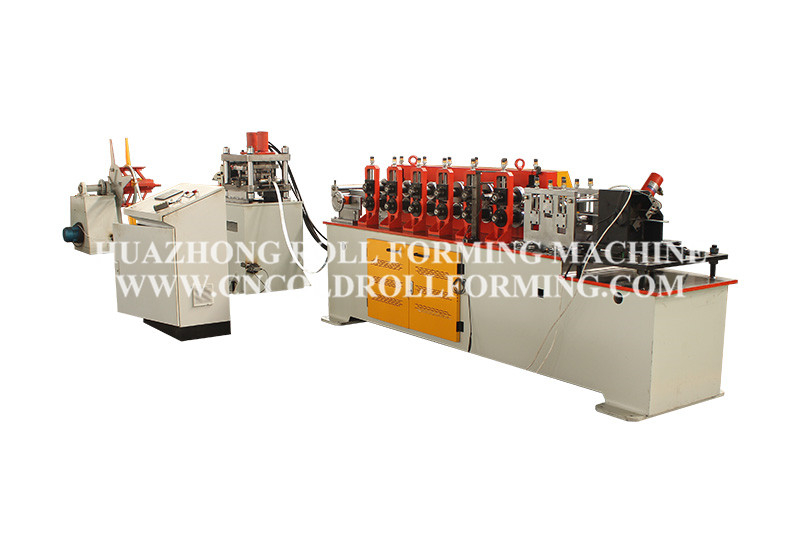

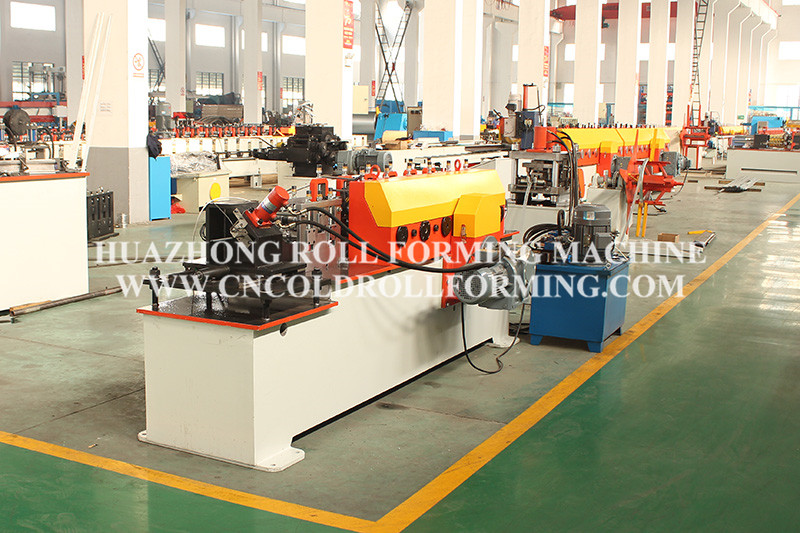

MACHINE PHOTOS

Shelve roll forming machine (6)

Shelve roll forming machine (8)

Shelve roll forming machine (2)

Shelve roll forming machine (3)

VIDEO

FACTORY INFORMATION

客户

客户1

roll forming machine COLD ROLL FORMING MACHINE Custom Roll Forming Machine SHELVE ROLL FORMING MACHINE goofd shelve roll forming machine CHANNEL ROLL FORMING MACHINE C profile roll forming machine C CHANNEL ROLL FORMING MACHINE c profile shelve roll forming machine c profile shelve forming machine
Email to this supplier

Related Products

BOXBEAM ROLL FORMING MACHINE
BOXBEAM ROLL FORMING MACHINE
UPRIGHT BEAM FOR SHELVES ROLL FORMING MACHINE
UPRIGHT BEAM FOR SHELVES ROLL FORMING MACHINE
SHELF BEAM ROLL FORMING MACHINE
SHELF BEAM ROLL FORMING MACHINE

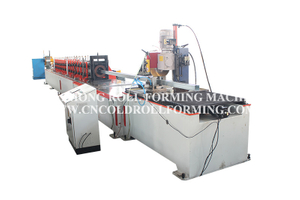

CARGO SHELF ROLL FORMING MACHINE
