ROLLER SHUTTER BOTTOM MACHINE

Thickness: 1.8mm
Forming stations: 24
Cutting type: Fly saw cutting with servo motor
Drive type: gear transmission system
Forming speed: 12m/min

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Fly saw cutting with servo motor---Run out table


TECHNICAL DETAILS

Frame: One-piece frame

Electric cabinet: Delta PLC control system, Delta inverter

Cantilever console: Cantilever type，Delta touch screen

Uncoiler: 3 Tons

Thickness:1.8mm

Coil width: 225mm(According to the profile type)

Forming station: 24

Main motor power: 7.5KW*2, 380V, 50HZ, 3Phase

Cutting type: Fly saw cutting with servo motor

Forming speed: 12m/min

Drive type: gear transmission system

MACHINE PHOTOS

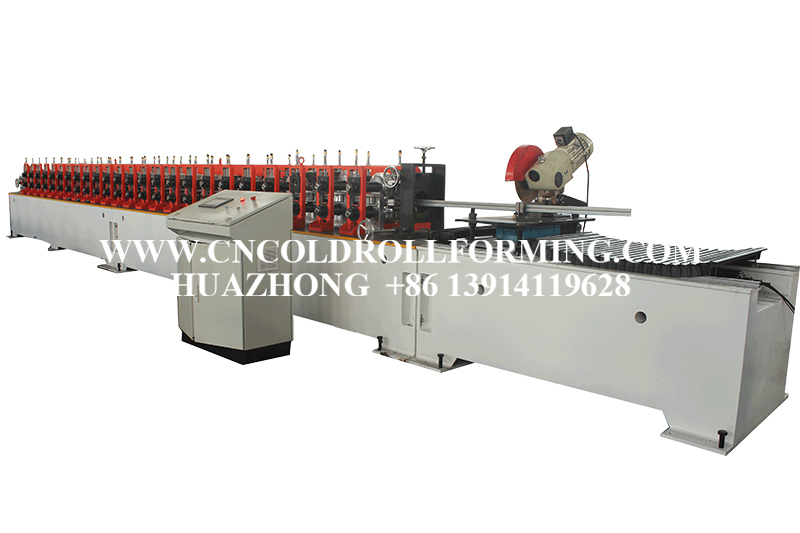

Shutter bottom roll forming machine (4)
