ROLLER SHUTTER BOTTOM ROLL FORMING MACHINE

Thickness: 1.5-2.0mm
Forming stations: 12
Cutting type: Hydraulic cutting
Drive type: gear transmission system
Forming speed: 15m/min

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic cutting---Run out table

TECHNICAL DETAILS

Frame: One-piece frame

Uncoiler: 3 Tons

Forming station: 12

Driving type: gear transmission

Main motor power: 11kw

Hydraulic system: 4kw

Electrical system: Delta control

Cutting type: Hydraulic cutting

Punching system: Independent punching equipment, 7.5kw

Material thickness: DX51D galvanized sheet,thickness: 1.5-2.0mm

Forming speed: 15m/min

Run out: 6 meter run out table


MACHINE PHOTOS

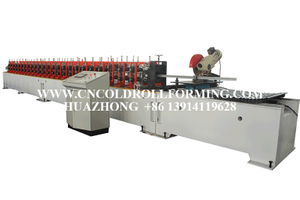

Roller shutter bottom forming machine (4)

Roller shutter bottom forming machine (2)

Roller shutter bottom forming machine (7)
