GUIDE ROLL FORMING MACHINE WITH PUNCHING

Thickness: 2.0mm pickling plate
Forming stations: 24
Cutting type: Fly saw cutting
Drive type: gear transmission system
Forming speed: 8m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Punching---Feeding guide---Roll forming---Fly saw cutting---Run out table


TECHNICAL DETAILS

Frame: One-piece frame

External hydraulic station: 7.5KW, 380V, 50HZ, 3Phase

Electric cabinet: Delta PLC control system, Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 5 Tons

Thickness: 2.0mm pickling plate

Coil width: 294mm (According to the profile type)

Forming station: 24

Main motor power: 7.5KW*2, 380V, 50HZ, 3Phase

Cutting type: Fly saw cutting

Forming speed: 8m/min

Drive type: gear transmission system


MACHINE PHOTOS

Track roll forming machine with punching (1)


Track roll forming machine with punching (7)


Track roll forming machine with punching (4)

VIDEO

FACTORY INFORMATION

客户

客户1

SHUTTER DOOR TRACK ROLL FORMING MACHINE COLD ROLL FORMING MACHINE CUSTOMIZED ROLL FORMING MACHINE TRACK ROLL FORMING MACHINE TRACK ROLL FORMING MACHINE WITH PUNCHING GUIDE ROLL FORMING MACHINE
Email to this supplier

Related Products

HIGH SPEED DOOR GUIDE ROLL FORMING EQUIPMENT
HIGH SPEED DOOR GUIDE ROLL FORMING EQUIPMENT
GUIDE ROLL FORMING EQUIPMENT
GUIDE ROLL FORMING EQUIPMENT
MUTE TRACK ROLL FORMING MACHINE(AUTOMATIC INSERT RUBBER )
MUTE TRACK ROLL FORMING MACHINE(AUTOMATIC INSERT RUBBER )
TRACK ROLL FORMING MACHINE
TRACK ROLL FORMING MACHINE
GUIDE ROLL FORMING MACHINE AND ANGLE ROLL FORMING MACHINE WITH QUICK CHANGE SYSTEM
GUIDE ROLL FORMING MACHINE AND ANGLE ROLL FORMING MACHINE WITH QUICK CHANGE SYSTEM
TRACK ROLL FORMING MACHINE（MUTE）
TRACK ROLL FORMING MACHINE（MUTE）
MUTE TRACK ROLL FORMING MACHINE
MUTE TRACK ROLL FORMING MACHINE
QUOTATION FOR DOOR GUIDE ROLL FORMING MACHINE
QUOTATION FOR DOOR GUIDE ROLL FORMING MACHINE
TRACK ROLL FORMING MACHINE
TRACK ROLL FORMING MACHINE

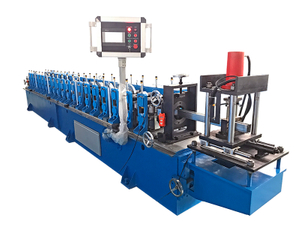

ROLL FORMING MACHINE FOR DOOR GUIDE
ROLL FORMING MACHINE FOR DOOR GUIDE

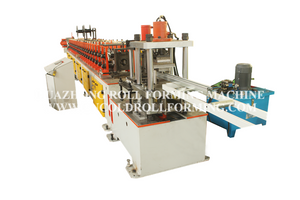

MUTE TRACK ROLL FORMING MACHINE
