PRODUCT DESCRIPTION

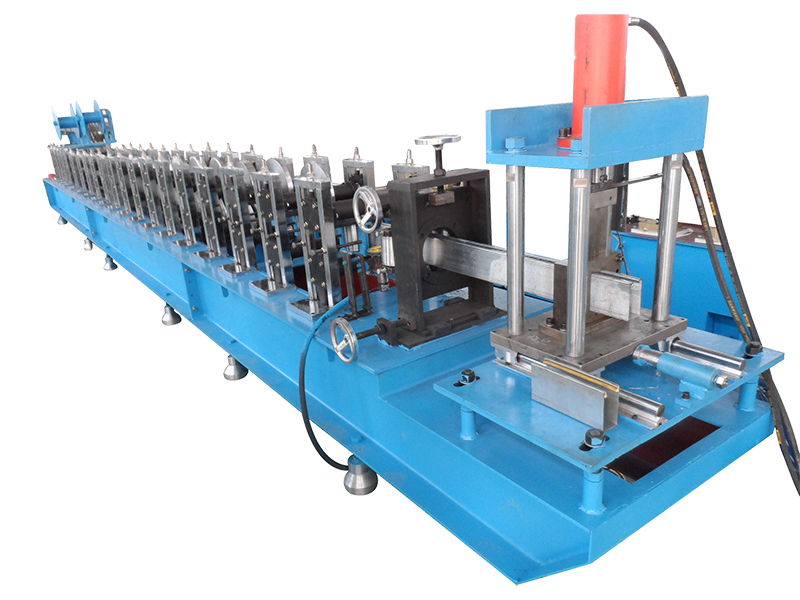

PROFILES/PICTURES OF THE MACHINE
Reference drawings, The actual use of drawings or samples provided by the buyer.
TECHNICAL DETAILS
Capacity: 3 tons
Material: #45 steel quenched
Power:2.2KW,03 Phase, 220/380V, 50HZ/60HZ
Method of open and close of segments: manual
Number of segments:4 pieces
Range of segment expansion: ø480- ø520
Inner diameter of coil: ø508
Maximum outer diameter of coil: ø1,300
Feeding speed:25m/min(transducer control)
Stations: 20
Rollers material: CR 15, HRC 60. Chrome coated: 0.03-0.05mm, Strength (MPA): 70 tons, 800 MPA
Shaft: diameter 50mm, material is #45 steel. Quenched hot treatment. Strength of the main shaft (MPA): 70 tons, 650MPA
Bearing brand: FAG Germany
Main motor: 7.5KW, 380/220V, 50/60HZ, 3 Phases (Siemens Brand)，Two motors
Transmission by gear
Station material: cast steel
Machine is equipped with cooling system
Touch screen brand: Delta
PLC brand: Siemens
Inverter brand: Siemens
Main components for low pressure electricity: Schneider Germany
Encoder: Omron
Sensor: Balluff B+F brand
Control motion/production process: Un-Coiler---12 stations roll forming machine---Hydraulic cutting by servo---output table
Cutting type: hydraulic cutting with servo motor
The material of knives: CR12MOV; heat treatment HRC 55-60, Quenched; the Strength in MPA: 950
Servo motor: 1.5KW, 220V
Tolerance of length: ±0.5mm
Action: the host does not stop, servo track to cut off
Hydraulic Motor: 5.5KW, 220V/380V, 50HZ/60HZ, 3 Phases, Siemens brand
Hydraulic pump: Yuken brand Taiwan
Hydraulic valve: Rexroth Germany
Hydraulic cylinder: China
The Hydraulic station have Accumulator
The stations have 1 valves
Length: 6 meters
Drive type: rollers
Material: galvanized sheet
Galvanized steel: 1.0-1.5mm
Roll forming machine space: 9.2m*1.55m*1.36m
Working space:19m*3m*3m
12-15m/min (including cutting)
Bearing in main shaft: 20 pcs
Other bearing (sub-rollers): a few
Limit switch:2 pcs
Low pressure electricity: a few
Relay:10 pcs
Oil tube: 2 pcs for each tool
Connector: a few
Cutting knives: 2 extra
Upper shaft and down shaft: 2 pieces
Station: 1 pieces
Gear: 2 pieces
